Kiev 4 Film Camera Maintenance and Restoration Guide

Kiev 4 Film Camera (1968) – Maintenance and Restoration Guide.

Cleaning and maintaining this classic Soviet-era rangefinder camera.

Camera Specifications

• Model: Kiev 4 Rangefinder (1968)
• Origin: Arsenal Factory, Kiev, Soviet Union

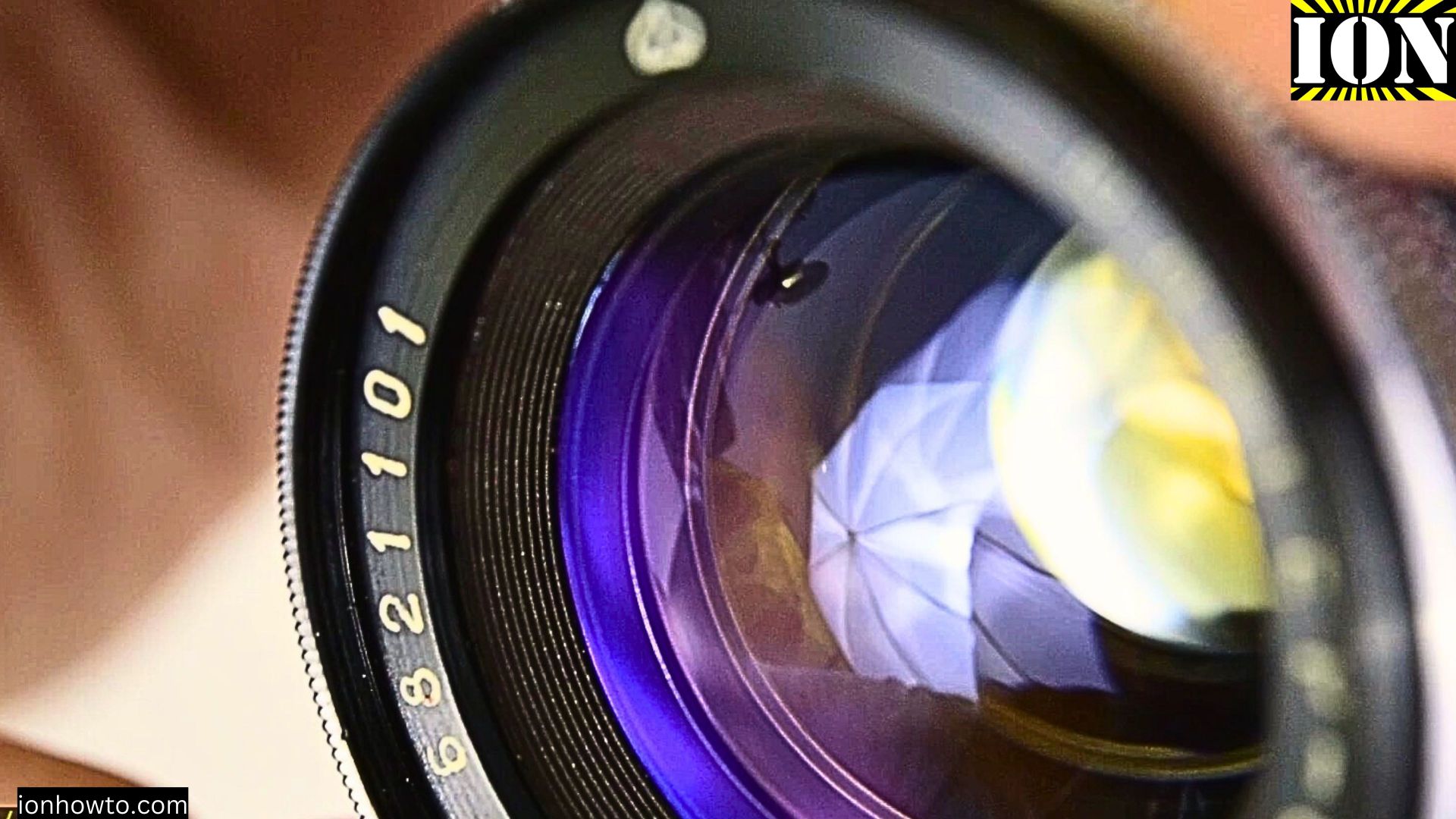

• Lens: Jupiter-8M 2/50 (50mm f/2.0)
• Film Type: 35mm roll film

Initial Inspection

Body Check

• Look for signs of corrosion or brass showing through
• Check all dials for smooth operation
• Inspect the rangefinder window for clarity
• Test shutter operation at all speeds
• Examine viewfinder for fungus or haze

Lens Assessment

• Jupiter-8M 2/50 inspection points
• Check aperture ring movement
• Look for oil on aperture blades
• Test focus smoothness
• Inspect glass elements for fungus or haze

Cleaning and Maintenance Guide

Camera Body Cleaning

• Use a soft brush to remove surface dust
• Clean leatherette with leather cleaner
• Wipe metal surfaces with isopropyl alcohol
• Clean viewfinder and rangefinder windows carefully
• Pay special attention to film guide rails

Lens Cleaning Process

• Start with the front element
• Clean rear element
• Check for smooth aperture operation
• Clean lens mount contact points
• Test focus mechanism

Light Seal Inspection

• Check door seals for deterioration
• Inspect hinge area seals
• Look for any light leaks around viewfinder
• Test film door closure

Film Loading Guide

Loading Film

• Open back door
• Insert film leader into take-up spool
• Ensure proper alignment in sprockets
• Close back and advance film
• Check frame counter operation

Using the Camera Controls

Essential Controls

• Film advance lever operation
• Shutter speed selection
• Aperture ring adjustment
• Focus mechanism
• Frame counter reset

Rangefinder Operation

• Align double images
• Focusing technique
• Parallax correction
• Frame lines usage

Common Issues

Mechanical Problems

• Sticky shutter
• Rangefinder misalignment
• Stiff focus ring
• Film transport issues
• Aperture blade oil

Optical Issues

• Fungus in lens elements
• Separation in lens coating
• Hazy viewfinder
• Dim rangefinder patch

Tips for Regular Maintenance

• Store with lens cap on
• Keep in a dry environment
• Exercise shutter regularly
• Clean contacts monthly
• Test light seals yearly

Shooting Tips

• Best used with ISO 100-400 film
• Zone focusing for street photography
• Using the uncoupled light meter
• Dealing with parallax correction
• Frame composition techniques

Value and Collections

• Typical market value range
• What to look for when buying
• Common missing accessories
• Original case and documentation
• Production variations

Final Thoughts

The Kiev 4 represents excellent Soviet engineering, and with proper maintenance, it can still produce remarkable images today. Regular cleaning and careful use will keep this classic camera working for many more years.

When using this camera, remember it’s over 50 years old – treat it gently and appreciate its historical significance while enjoying its unique shooting experience.
