VW Polo 9N Mk4 Glovebox Replacement

Replace GloveBox on VW Polo 9N Mk4

How to Remove or Replace Glove Box on VW Polo 9N Mk4.

VW Polo glove box removal

How to remove or replace the glove box on VW Polo 9N Mk4.

Read about how to fix recirculation flap not working.

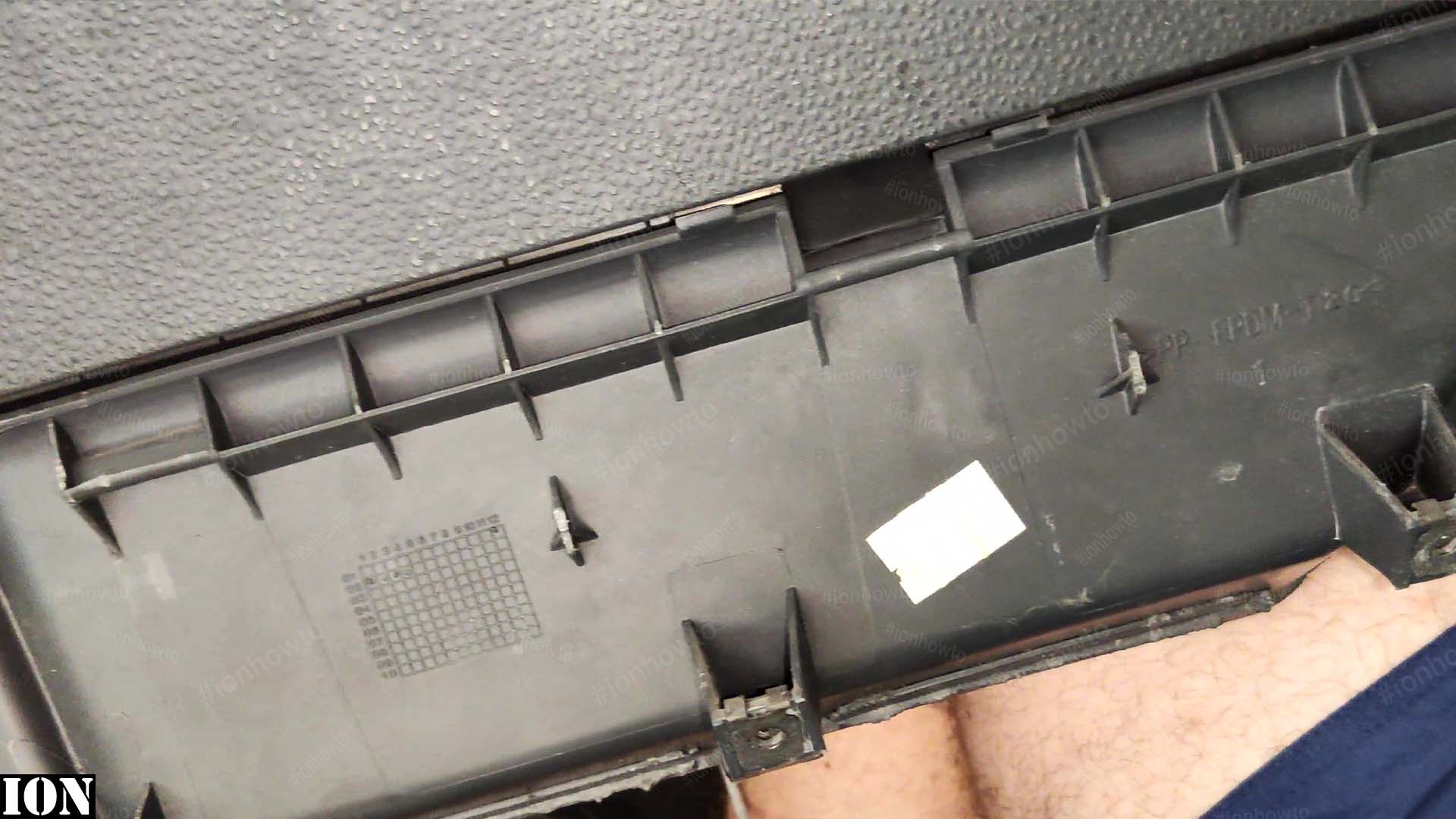

VW Polo 9N Mk4 Glovebox Body
VW Polo 9N Mk4 Glovebox Body

Glove box removal on VW Polo 9N Mk4 to replace the glove box with a new replacement part or to access the heater blower motor, V154 or V68 re-circulation flap motor or to access the thermal resistor for the AC heater blower motor.

Remove T20 Torx 20 screws

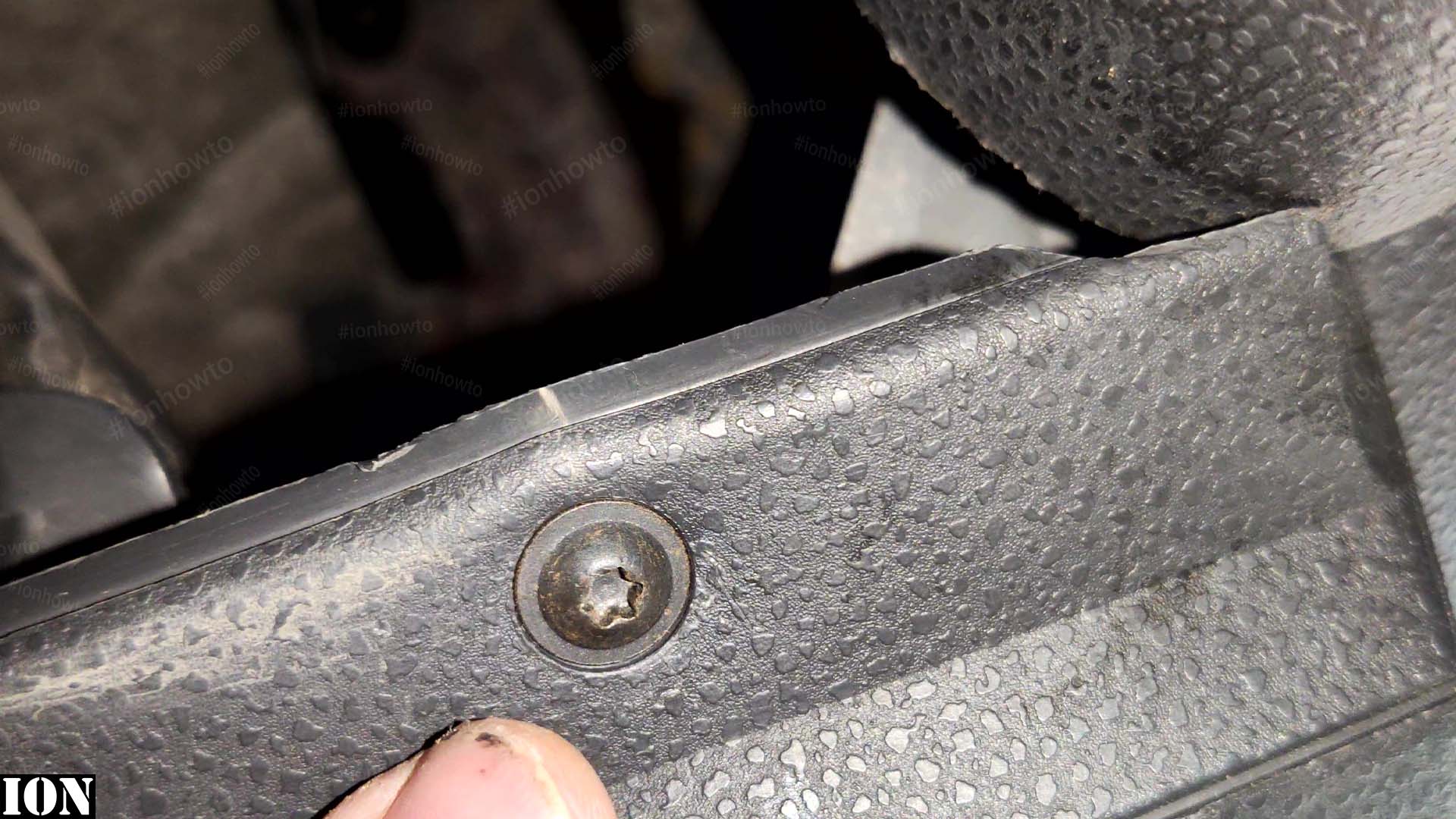

VW Polo 9N Mk4 Glovebox Torx 20 T20 screws
VW Polo 9N Mk4 Glovebox Torx 20 T20 screws

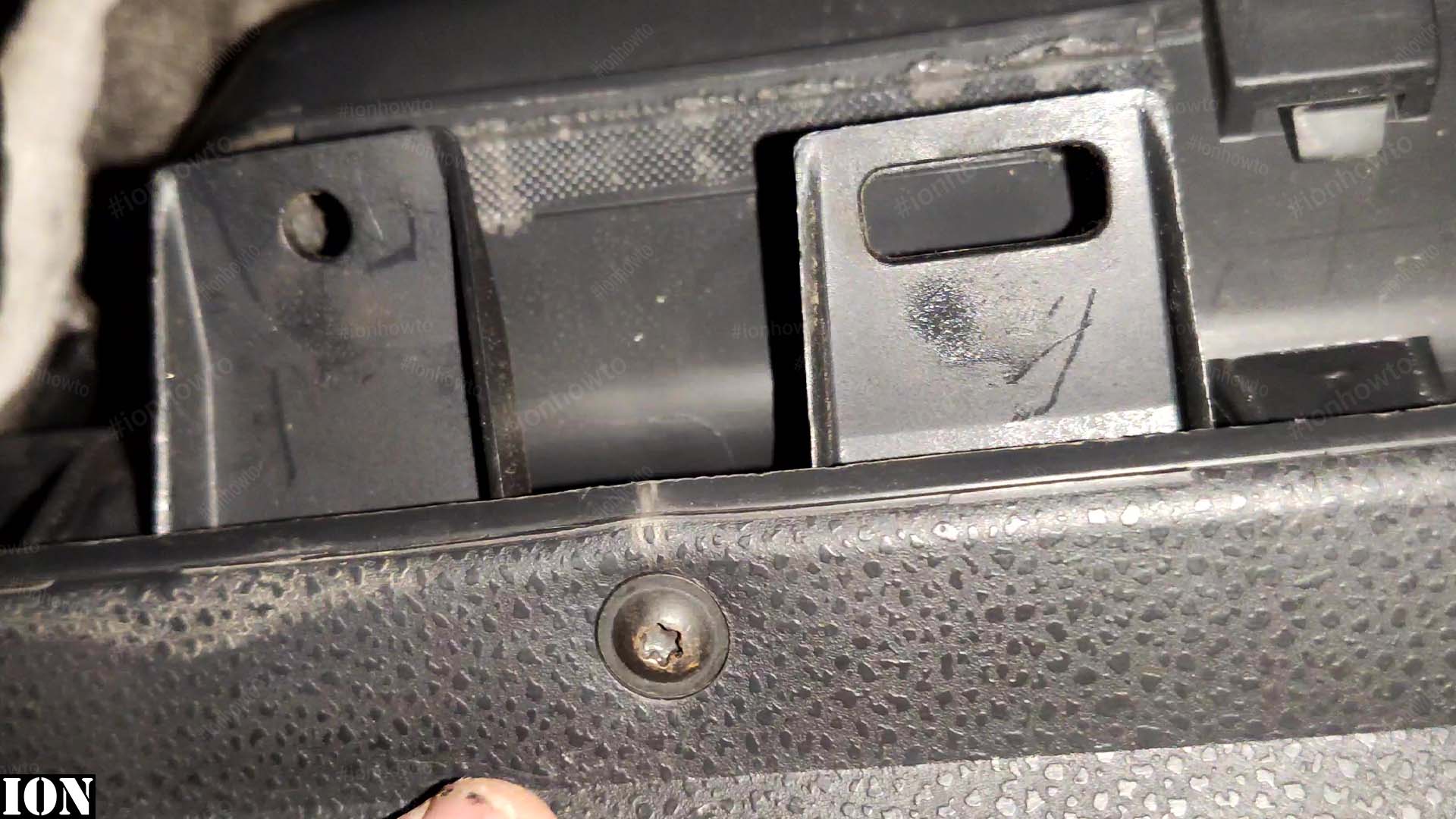

VW Polo 9N Mk4 Glovebox T20 Torx 20 screws
VW Polo 9N Mk4 Glovebox T20 Torx 20 screws

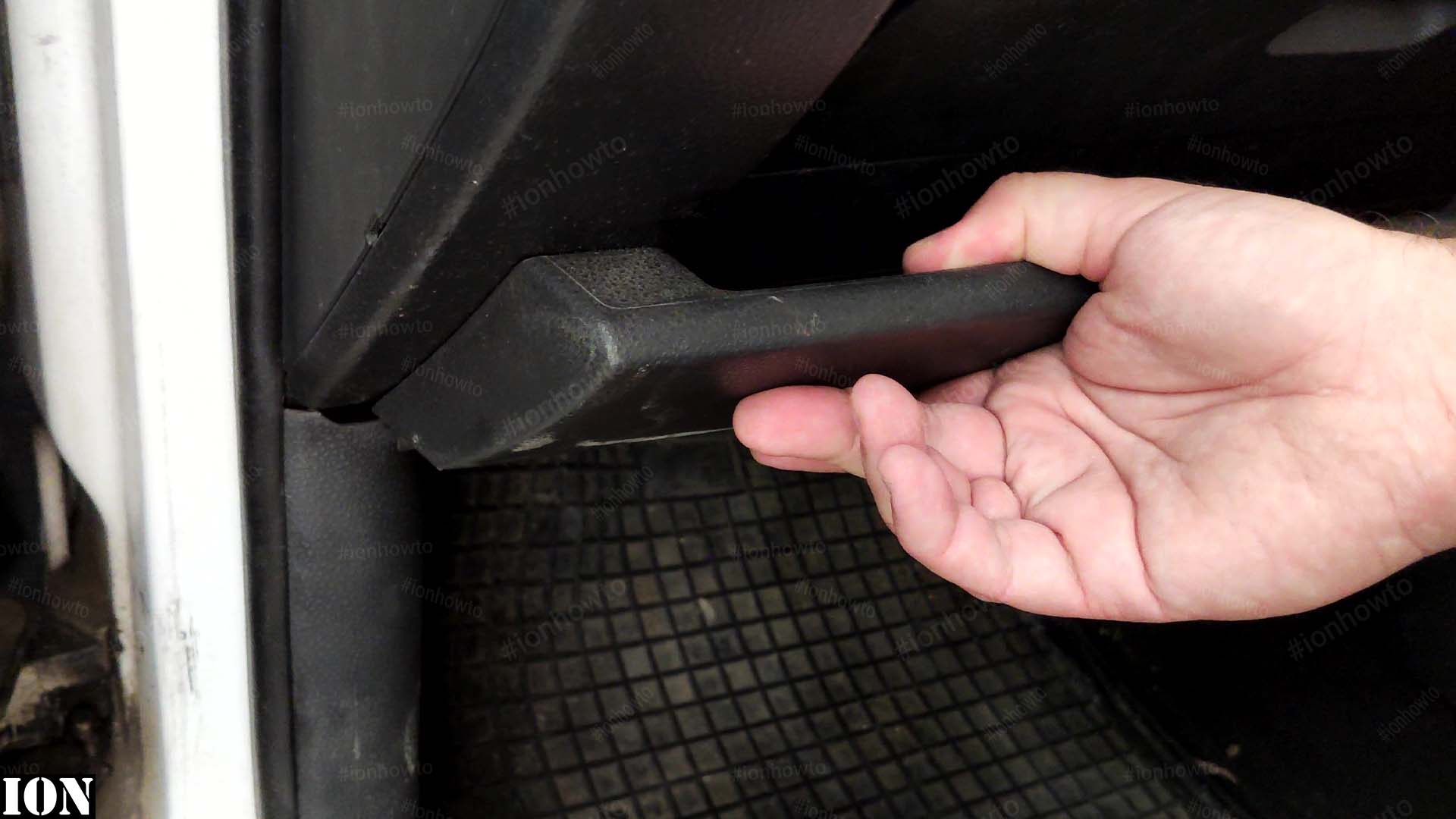

VW Polo 9N Mk4 Glovebox Tray
VW Polo 9N Mk4 Glovebox Tray

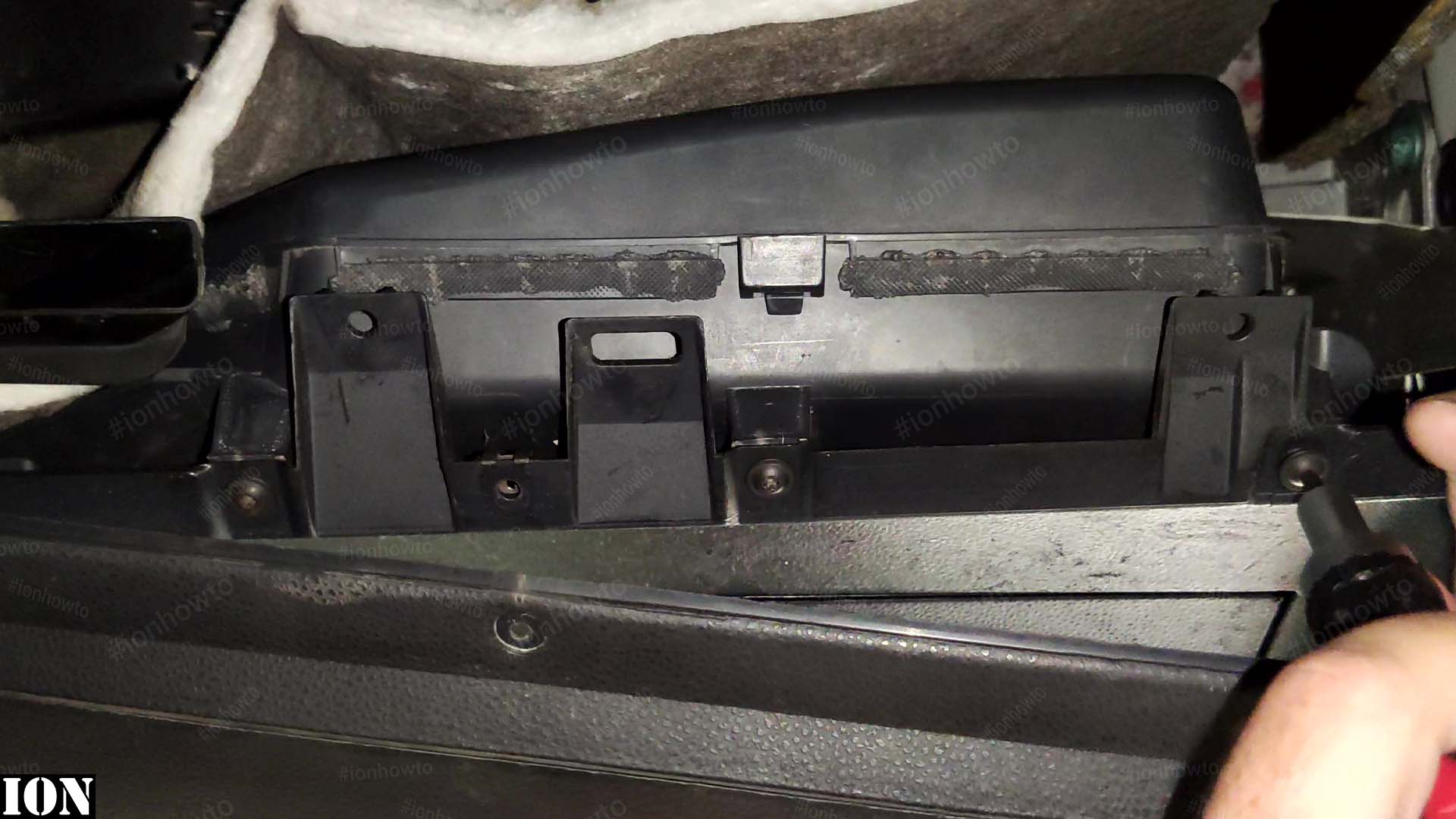

VW Polo 9N Mk4 Glovebox Screws
VW Polo 9N Mk4 Glovebox Screws

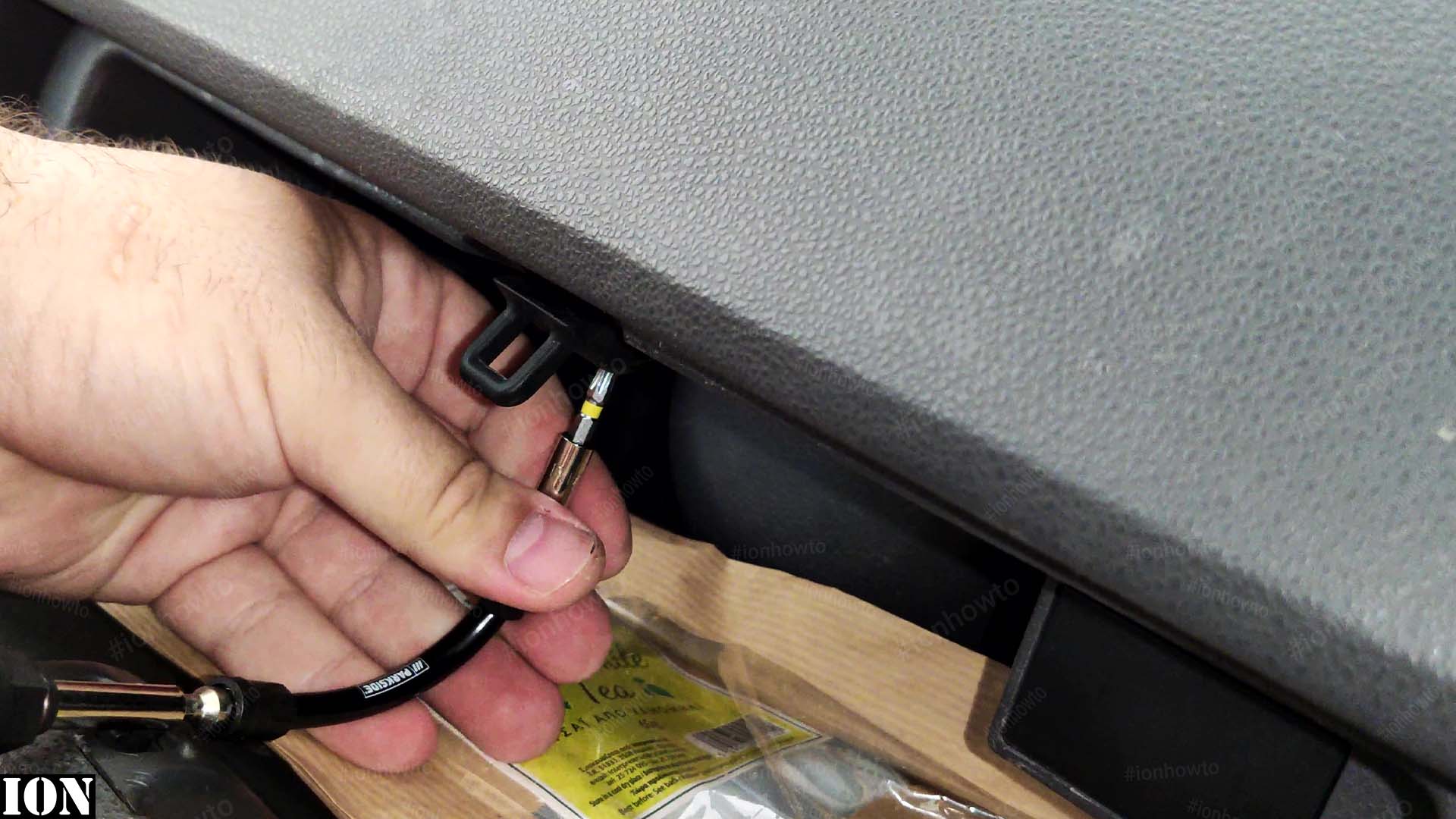

VW Polo 9N Mk4 Glovebox remove T20 Torx 20 screws
VW Polo 9N Mk4 Glovebox remove T20 Torx 20 screws

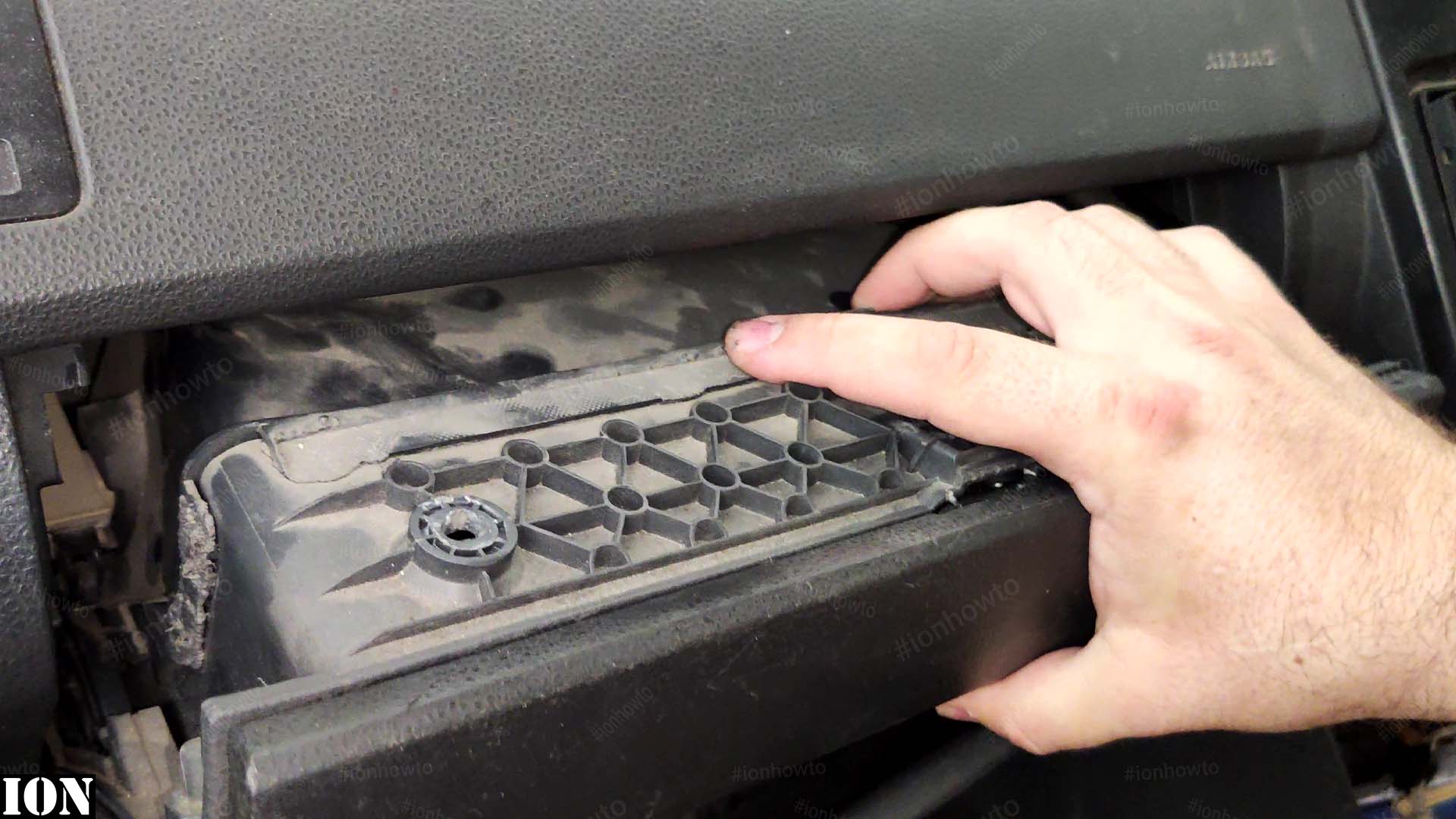

VW Polo 9N Mk4 Glovebox Removal
VW Polo 9N Mk4 Glovebox Removal

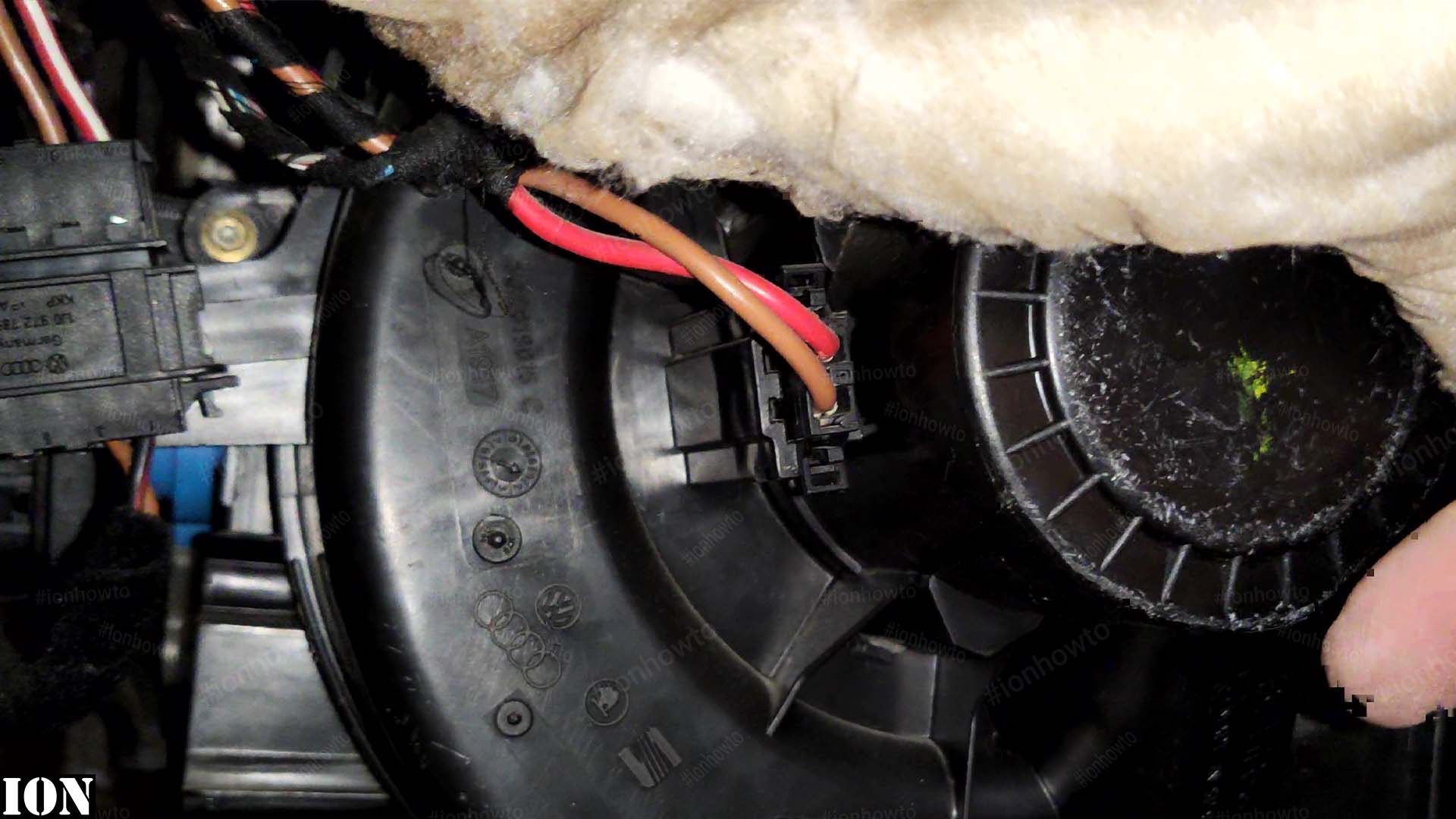

VW Polo 9N Mk4 Heater Blower Motor
VW Polo 9N Mk4 Heater Blower Motor

When the thermal resistor is blown-out, the AC fan speed will only work on speed 4 not on speed 1,2,3. The resistor is not a regular resistor but a thermal fuse with a specific maximum safe temperature.

It’s safety fuse and to replace it, you must remove the old resistor with a pair of pliers.
Then crimp a new resistor in place of the old one.

When removing the glove box, be very careful with anything marked with the color yellow.

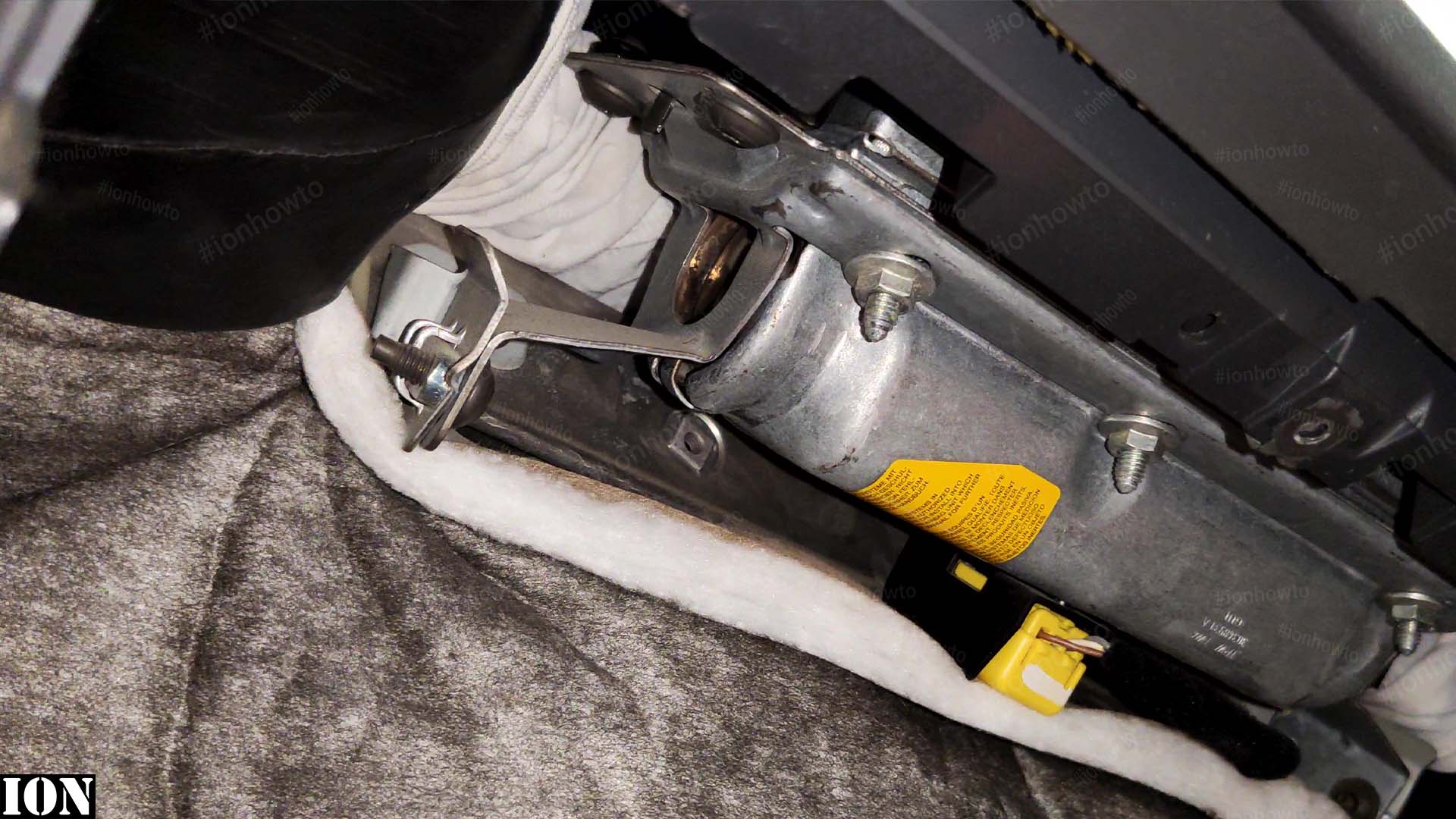

VW Polo 9N Mk4 Passenger Airbag Behind Glovebox
VW Polo 9N Mk4 Passenger Airbag Behind Glovebox

Behind the glove-box is the airbag system. Do not touch the airbag electrical connector or the air canister.
Best is to fold up the protection fleece blanket when working on the AC heater blower motor fan or other parts.

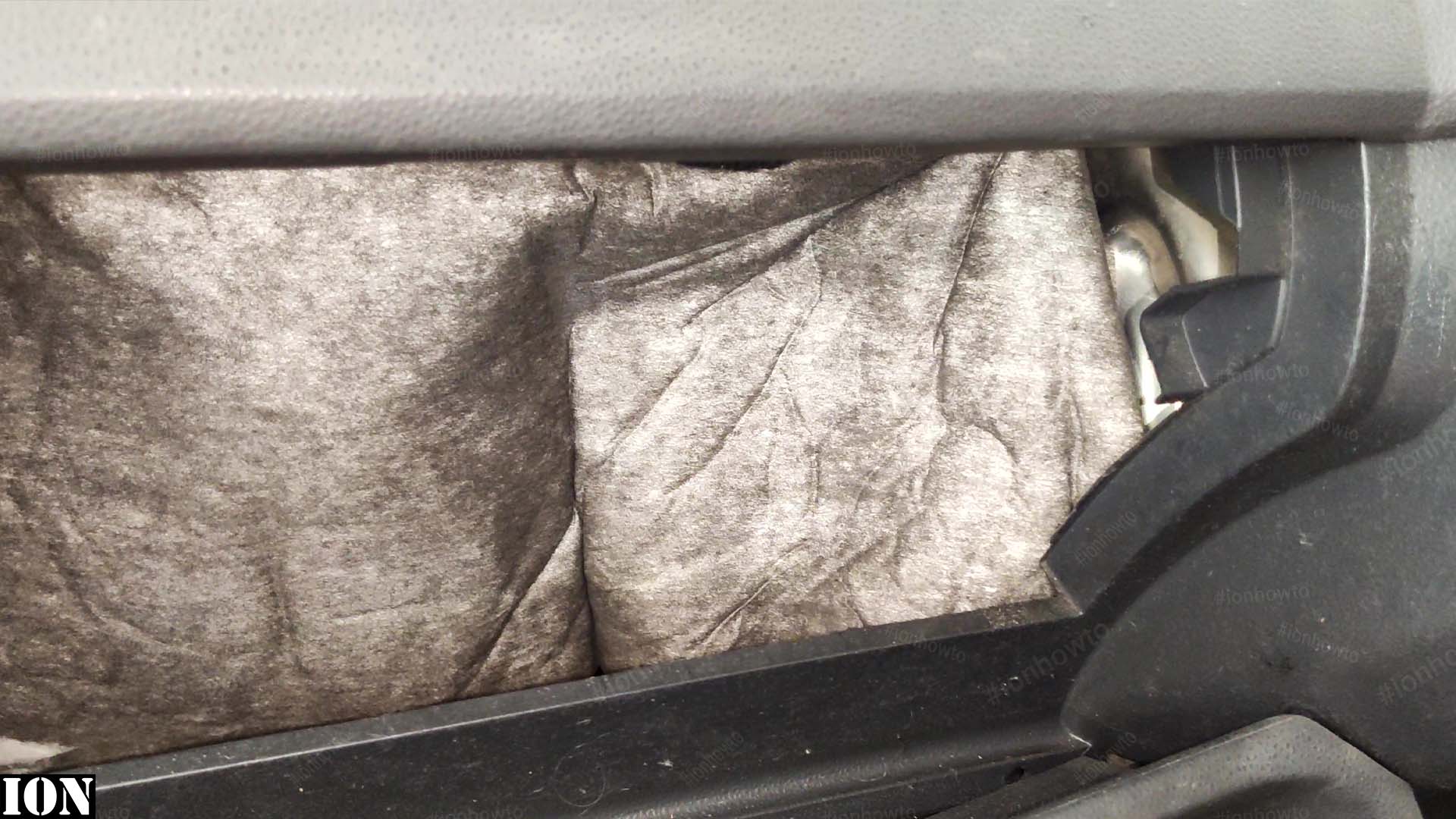

VW Polo 9N Mk4 Glovebox Airbag Fleece protection
VW Polo 9N Mk4 Glovebox Airbag Fleece protection

When reinstalling the glove box, check that the screw clips have not fallen out.
If a screw clip is missing, that screw will not get tight and always be loose no matter how many times you turn it.
It’s easy to put the clips back, the hardest part is finding them if they do fall out.

Glove box part number

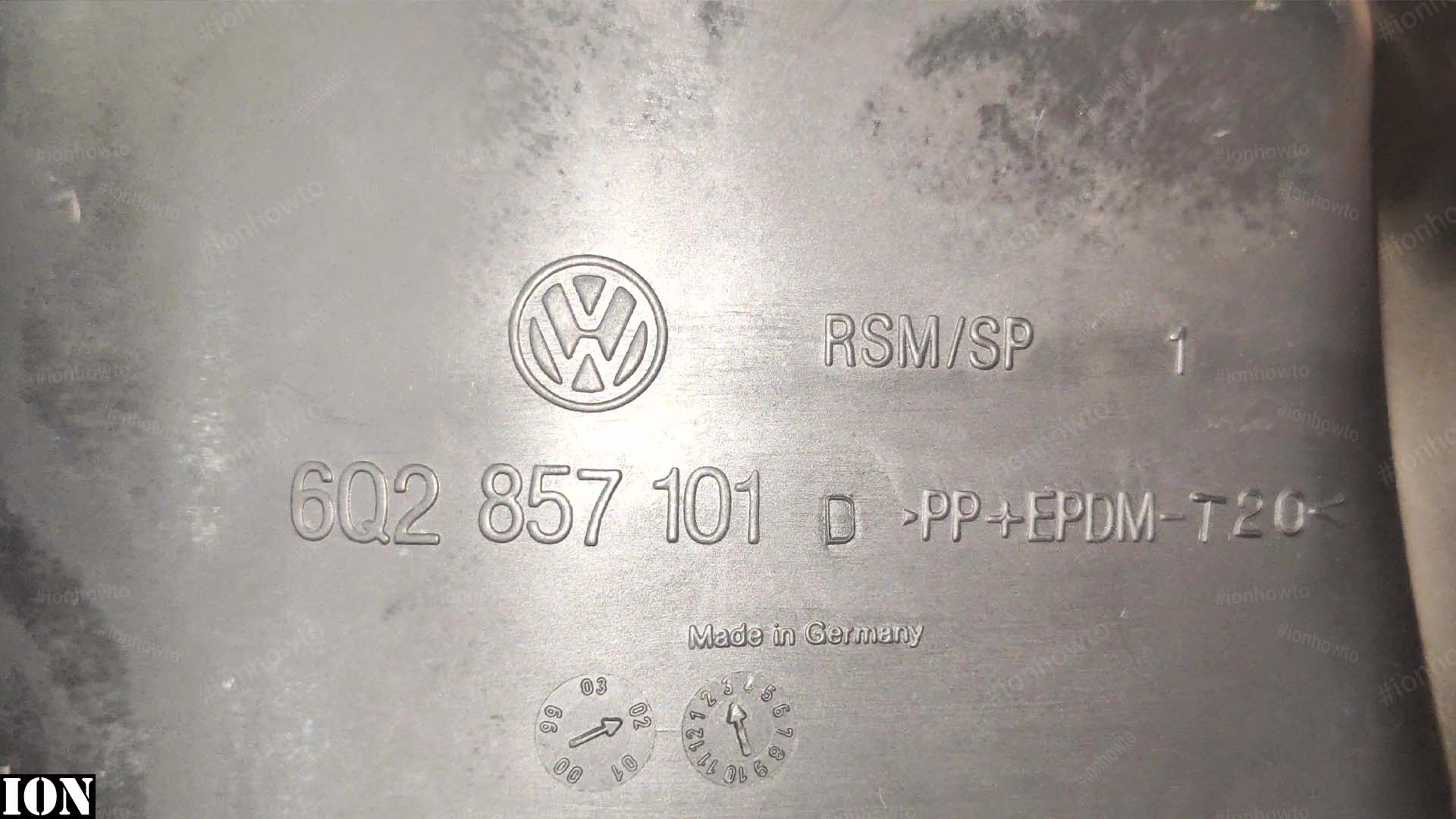

VW Polo 9N Mk4 Glovebox Part Number
VW Polo 9N Mk4 Glovebox Part Number

Glove box part number for VW Polo 9N mk4 is 6Q2 857 101 D / 6Q2857101D / 6Q2857101

Glove box light cover part number

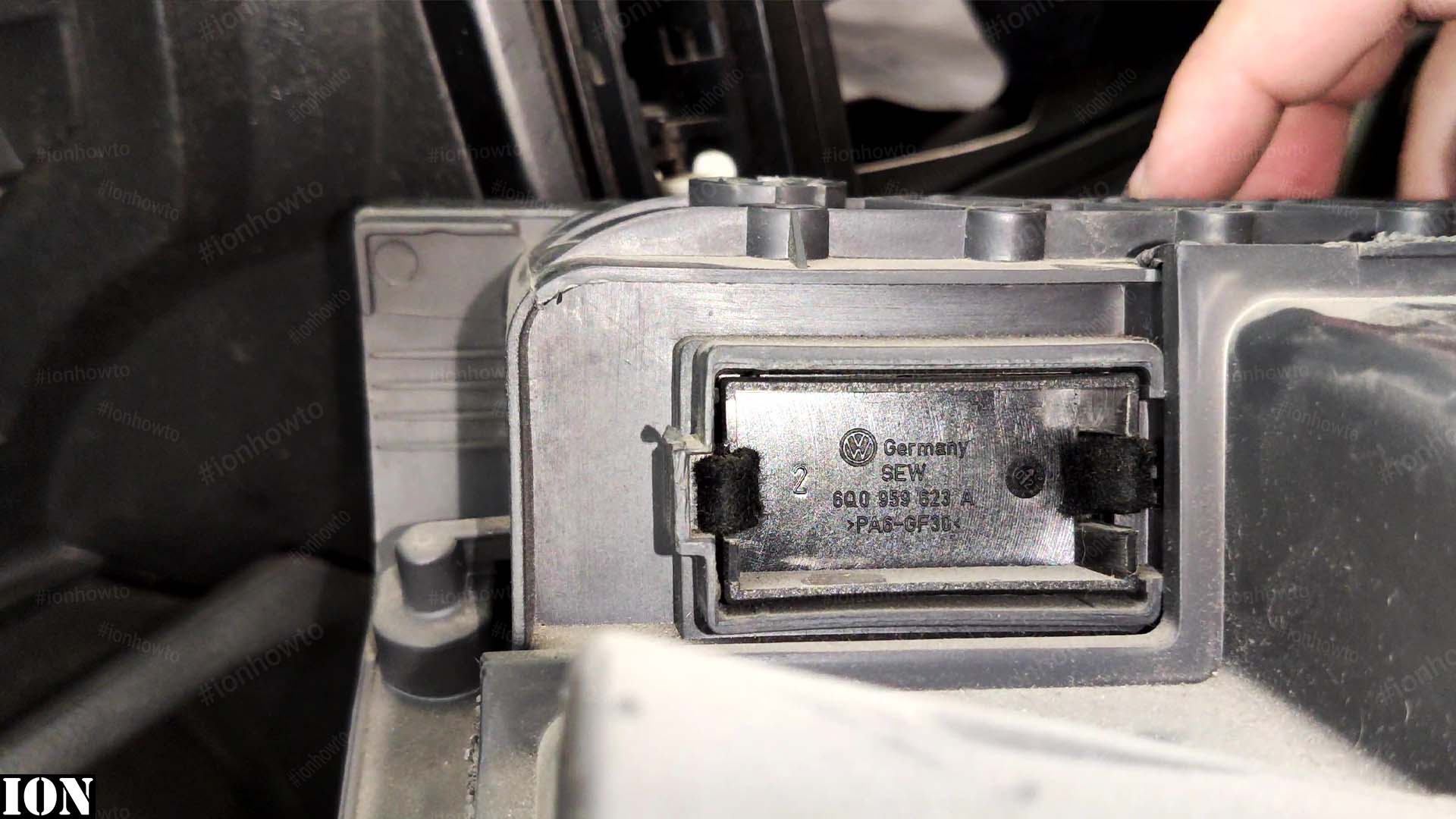

VW Polo 9N Mk4 Glovebox Light Part Number DIY
VW Polo 9N Mk4 Glovebox Light Part Number DIY

Glove box light cover part number in VW Polo 9N mk4 is 6Q0 959 623 A / 6Q0959623A / 6Q0959623

Glove box closing mechanism

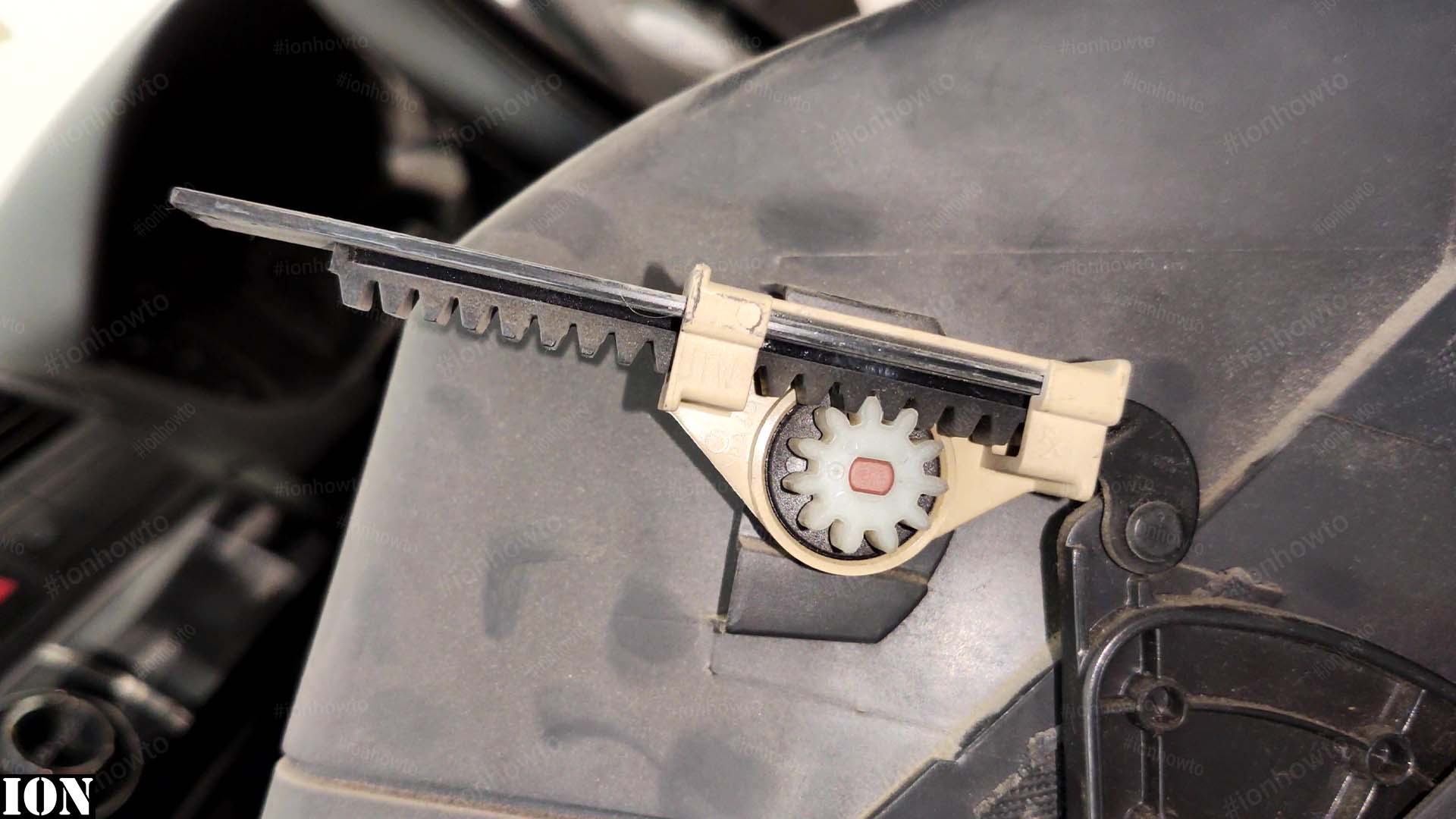

VW Polo 9N Mk4 Glovebox Soft Close Mechanism
VW Polo 9N Mk4 Glovebox Soft Close Mechanism

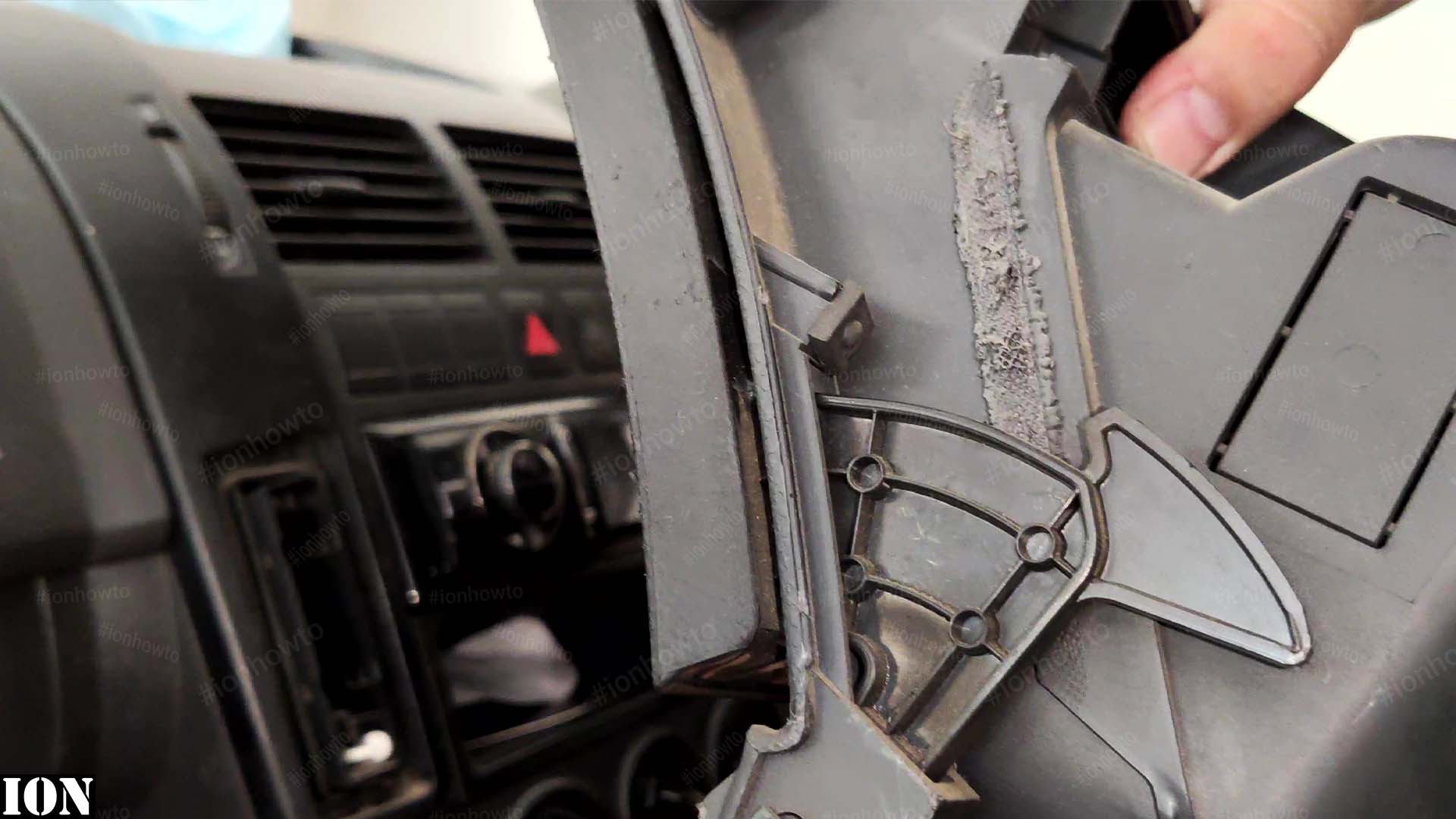

VW Polo 9N Mk4 Glovebox Mechanism
VW Polo 9N Mk4 Glovebox Mechanism

Hope this helps you, write a comment bellow if you did this and say how it went.
